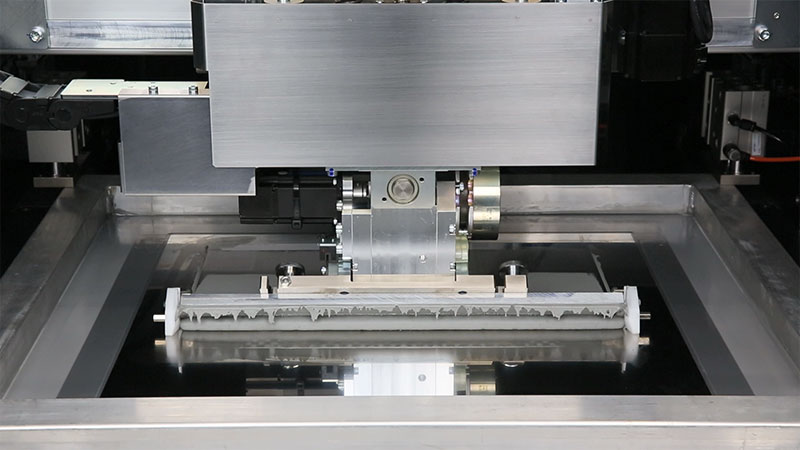

Program change squeegee attack angle (1 degree units between 45 to 65°) and speed to an ideal setting to provide optimal printing conditions that match the solder being used.
A stencil vacuum mechanism delivers consistent high accuracy printing with no effects from stencil droop. Also drastically cuts the setup time since no offset entry is needed during back and forth printing movement.
Handy function corrects solder fill amount for the PCBs which have just finished cleanings and in this way cuts down on solder print irregularities.
Make full-on print inspections with a dedicated inspection camera offering a wide field of view and excellent resolution.
Advanced feature, superimposes 2 images in layers on the monitor, so position alignment can be checked at a glance. Now even a beginner can instantly make fine parameter adjustments for print position alignment.
This system ensures cleaning that matches work conditions after making settings such as cleaning type, speed and suction.
Cleaner fluid is easily replaceable during production from a large capacity bottle mounted on front side of machine. The fluid remaining in the bottle can be easily checked at a glance.
ID monitoring of solder, stencil, and squeegees via barcodes prevents entry setting errors during setups and changeovers by matching PCB data with actual work task. This also lets the operator check solder expiration dates (humidity, oxidation, Guaranteed Time Limit).
Function periodically measures (1 back-and-forth motion) rolling width of solder on stencil. An alarm notifies the operator when resupply is needed to prevent missing resupply periods and eliminate irregular resupply timing.
Bad mark data recognized by the YCP10 is transferred to the mounter to drastically cut total line loss and boost production
High durability SMT products with “made-in-Japan” extra-high standards! YAMAHA makes the most of its stance as a “full lineup manufacturer” of mounting equipment including printers, dispensers, surface mounters, inspectors to offer a higher degree of efficiency and quality spanning the entire production line.
Specifications and appearance are subject to change without prior notice.
